ADAM Equipment ATP2 Thermal Printer

ADAM Equipment ATP2 Thermal Printer

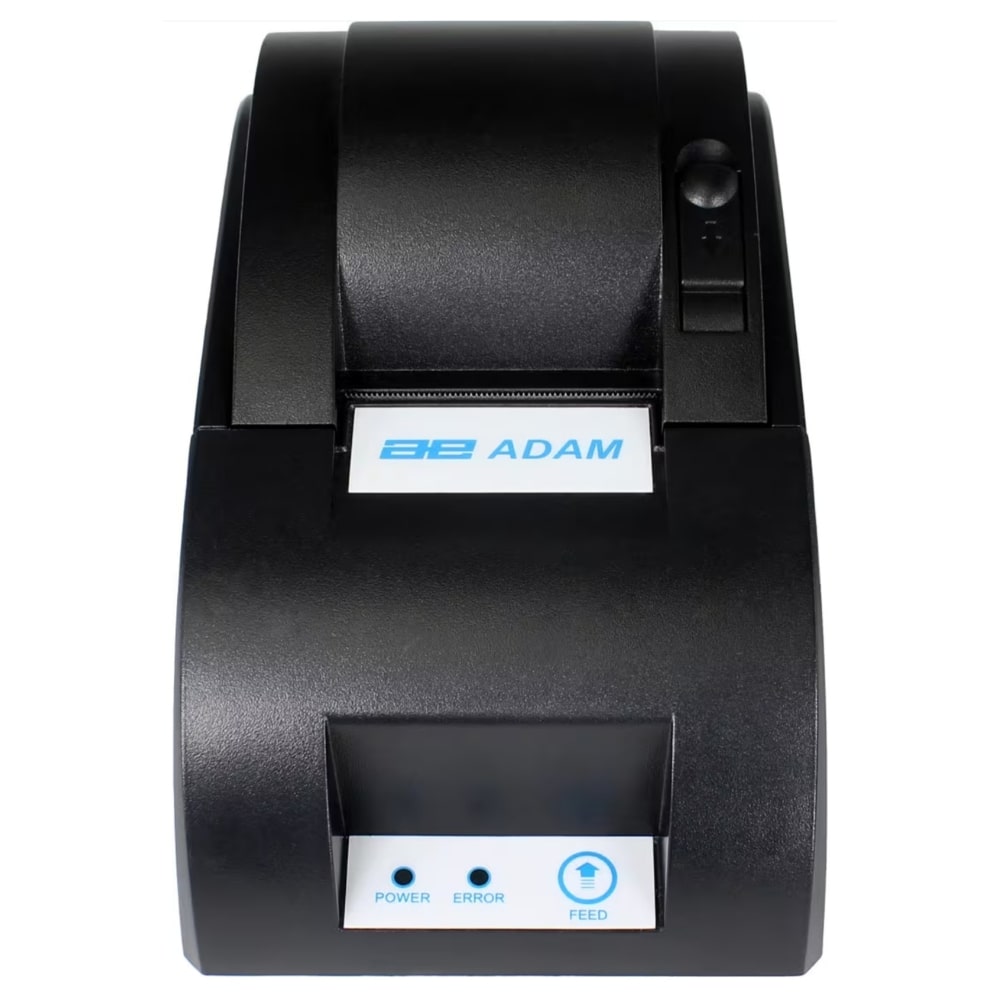

The ATP2 thermal printer is a compact, general-purpose thermal roll printer specifically designed for seamless integration with Adam balances and scales via RS-232 interface. Engineered for efficiency and simplicity, this space-saving printer occupies minimal bench or tabletop space while delivering reliable direct thermal line printing at approximately 50mm per second. The ATP2 is preset to work with the default RS-232 interface on Adam balances but adapts easily to other equipment, making it a versatile printing solution for laboratory and industrial weighing applications. Operation is straightforward with a simple on/off switch, paper feed button, and two LED indicators, while the printer supports a variety of commands including setting tabs, adjusting spacing and carriage return, specifying absolute position, and selecting or disabling double width with designate line feed functionality.

With impressive print capabilities including 24×24 dot character printing, ANK character set support (12×24 point, 1.25mm width × 3.00mm height), and Chinese character database compatibility (3.00mm width × 3.00mm height), the ATP2 delivers clear, legible printouts for diverse applications. The printer utilizes 57.5±0.5mm thermal paper with an effective print width of 48mm, print density of 8 points/mm (384 points/row), and hand-to-tear paper handling with photoelectric sensor for out-of-paper detection. Measuring a compact 197×120×102mm and weighing just 644g (paper rolls not included), the ATP2 operates reliably in temperatures from 5-40°C with 10-80% relative humidity, powered by DC12V, 3A supply via 6-wire RJ-11 socket. The 50KM print head life ensures long-term durability, while multiple interface options including serial (D-SUB 25 Socket with RTS/CTS support, 4800bps baud rate), parallel (8-bit with BUSY handshake protocol), and cashbox control provide flexible connectivity backed by a comprehensive 2-year warranty.

Features of ADAM ATP2 Thermal Printer:

• Complete Printer System with 2-Year Warranty - Includes photoelectric sensor for paper detection, hand-to-tear paper handling, DC12V/3A power supply, and comprehensive 2-year warranty for peace of mind.
• Direct Thermal Line Printing - Fast, reliable printing at approximately 50mm per second with 8 points/mm density (384 points/row) for clear, legible balance readouts and records.
• Compact Space-Saving Design - Minimal footprint of 197×120×102mm and lightweight construction (644g without paper) occupies limited bench space while remaining easily portable.
• Preset RS-232 Compatibility - Comes preconfigured to work with Adam balance default RS-232 interface but easily adapts to other equipment for versatile laboratory integration.
• Simple Operation - User-friendly design features only an on/off switch, paper feed button, and two LED indicators for straightforward, hassle-free operation.
• Multiple Interface Options - Flexible connectivity via serial interface (D-SUB 25 Socket with RTS/CTS, 4800bps), parallel port (8-bit with BUSY handshake), and cashbox control (DC12V, 3A, RJ-11).
• Advanced Character Support - Prints ANK characters (12×24 point), National Standard I/II Chinese characters (24×24 point), and custom character database with adjustable line spacing.
• Versatile Print Commands - Supports bitmap printing with different density levels, lower graphics printing, double width/height characters, setting tabs, spacing control, and carriage return functions.
• Long Print Head Life - Durable 50KM print head life ensures extended service with minimal maintenance requirements for reliable long-term performance.
• Wide Operating Range - Functions reliably in temperatures from 5-40°C with 10-80% working relative humidity; storage range of -20 to 60°C with 10-90% humidity.

Applications for ADAM ATP2 Thermal Printer:

• Laboratory Balance Data Recording - Print weighing results, dates, times, and sample identification directly from analytical and precision balances for permanent laboratory records and documentation.
• Quality Control Documentation - Generate printed records of weight measurements for quality control testing, batch verification, and compliance documentation in manufacturing environments.
• Inventory and Stockroom Management - Print weight data for inventory tracking, receiving documentation, shipping verification, and stockroom record-keeping applications.
• Pharmaceutical Compounding Records - Create permanent printed records of ingredient weights, formulation data, and batch information for pharmaceutical compounding and regulatory compliance.
• Educational Laboratory Settings - Provide students with printed weight data for experiments, demonstrations, and laboratory reports in academic chemistry and physics courses.
• Retail and Commercial Weighing - Generate receipts and transaction records for retail scales, produce weighing, and commercial applications requiring printed weight documentation.
• Food Production and Processing - Document ingredient weights, portion control data, and batch formulation records in food processing and commercial kitchen operations.
• Research Data Collection - Create timestamped printed records of experimental weighing data for research protocols, materials testing, and scientific studies.
• Shipping and Receiving Operations - Print weight verification records for package processing, freight documentation, and logistics operations requiring weight confirmation.
• Manufacturing Process Control - Generate printed records of component weights, batch measurements, and production data for process control and traceability in manufacturing operations.
