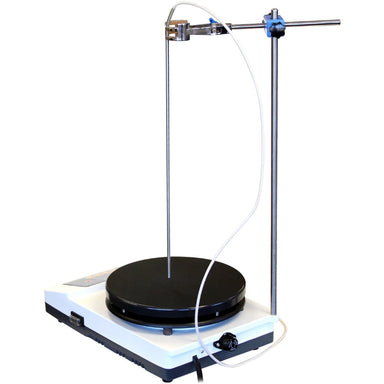

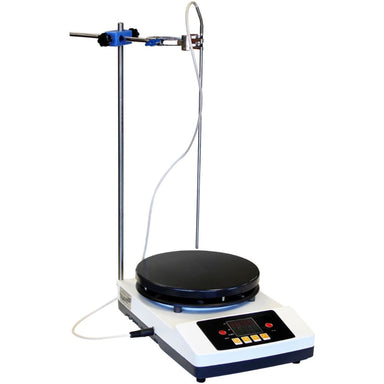

Across International HP-6L & HP-8L Magnetic Stirrer and Hot Plate

High-Performance Temperature Control and Contamination-Free Mixing

The Across International HP-6L and HP-8L Magnetic Stirrers with Heated Plate combine two essential laboratory functions into a single, compact unit. These industrial-grade benchtop devices are designed for applications requiring precise temperature control and uniform sample agitation, replacing bulkier equipment like traditional heating mantles or separate hot plates. The system uses a rotating magnetic field to spin an immersed stir bar, providing efficient, quiet, and contaminant-free mixing at speeds up to 2,000 rpm. This mechanism is ideal for use in hermetically sealed or glass vessels, eliminating the risks of external contamination and wear associated with gear-driven mixers. With maximum stirring volumes of up to 8 L, the HP-L series is perfectly suited for preparing solutions in chemistry, biology, and pharmaceutical research where cleanliness and consistency are paramount.

Precision Heating and Robust, Maintenance-Free Design

The HP-L series offers exceptional thermal performance, utilizing a durable ceramic-coated aluminum plate capable of reaching temperatures from ambient up to 350 degrees Celsius. Temperature accuracy is maintained by a high-precision PID controller, which is coupled with an included external PT100 thermocouple (with a 280 mm stainless steel probe) for direct, feedback-controlled monitoring of the sample liquid. The unit is powered by a robust, low-maintenance brushless DC motor designed for long operational life. Safety is prioritized with features like thermocouple failure protection and built-in fuse protection. Backed by a one-year warranty and standard CE certification, these stirrers deliver the strength and durability necessary to support vessel weight while providing reliable, continuous heating and mixing in demanding laboratory environments.

Features:

Reliable Protection: Covered by a 1-Year Warranty for peace of mind.
Wide Temperature Range: Heating plate achieves temperatures from ambient up to 350 degrees Celsius.
High Stirring Capacity: Powerful brushless DC motor supports stirring volumes up to 8 L (HP-8L model).
Precision Control: PID controller with digital display for accurate temperature and rotation speed settings.
External Temperature Feedback: Includes a PT100 external thermocouple (280 mm stainless steel probe) for direct liquid temperature control.
Contamination-Free Mixing: Magnetic stirring eliminates external moving parts, making the process cleaner and quieter than mechanical mixers.
Durable Heating Plate: Chemical-resistant, ceramic-coated aluminum plate (up to 280 mm diameter).
Safety Features: Includes thermocouple failure protection and built-in fuse protection.
Reliable Operation: One-year warranty with standard CE certification (UL/CSA optional).

Need Help? Call 1300 812 450

Specifications

HP-6L

HP-8L
