Across International 24 & 40 Metric Tonne Laboratory Pellet Presses

Precision Sample Preparation for Materials Research

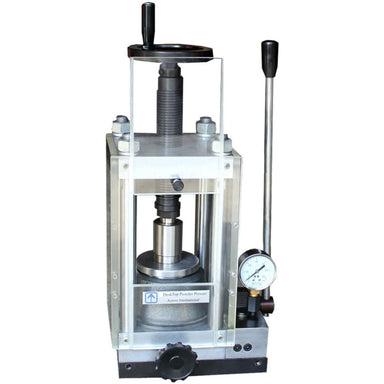

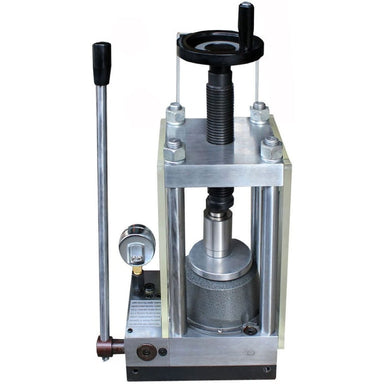

The Across International MP24A and MP40A desktop manual pellet presses deliver powerful compression capabilities for materials and chemistry research laboratories preparing compound samples. The MP24A generates up to 24 metric tonnes (52,910 lbs) of pressure with a maximum working space of 100x100x140mm (LxWxH) and compatibility with 50mm ID round die sets, while the MP40A provides increased capacity at 40 metric tonnes (88,185 lbs) with a larger 155x102x170mm working space accommodating up to 102mm ID round die sets. Both models feature built-in hydraulic pumps with auto-return function and 1-inch hydraulic cylinder travel distance, ensuring efficient operation and consistent sample preparation. The compact desktop design makes these presses ideal for laboratory environments where space is at a premium.

Safety and Versatility for Demanding Applications

The MP24A includes a 10mm thick transparent safety shield providing operator protection during high-pressure operations, while the MP40A's open design makes it particularly suitable for operation inside glove boxes under oxidizing and inert gas atmospheres—essential for sensitive materials requiring controlled environments. Both presses utilize robust construction to withstand repeated high-pressure cycles while maintaining precise control over sample preparation parameters. The manual hydraulic operation provides tactile feedback and precise pressure control, allowing researchers to optimize pressing conditions for different sample materials and experimental requirements. These reliable pellet presses are essential tools for spectroscopy sample preparation, materials testing, pharmaceutical research, and any application requiring uniform, high-pressure compaction of powdered samples into pellets or discs.

Features:

MP24A (24 Metric Ton Press):

High Pressure Capacity: 24 metric tonnes (52,910 lbs) maximum pressure for demanding sample preparation.
Integrated Safety Shield: 10mm thick transparent shield protects operators during high-pressure operations.
Built-in Hydraulic System: Auto-return hydraulic pump simplifies operation and improves efficiency.
Compact Desktop Design: Space-saving 270 x 200 x 480 mm footprint (38kg) ideal for laboratory benchtops.
Compatible Die Sets: Accommodates Across International 50mm ID round die sets.

MP40A (40 Metric Ton Press):

Maximum Pressure Output: 40 metric tonnes (88,185 lbs) for high-force sample compaction.
Glove Box Compatible: Open design enables operation under oxidizing or inert gas atmospheres
Enhanced Working Space: Larger 155 x 102 x 170mm (55kg) capacity accommodates bigger samples and die sets.
Versatile Die Compatibility: Supports up to 102mm ID round die sets for diverse sample sizes.
Robust Construction: 330 x 200 x 560mm (LxWxH) frame designed for continuous laboratory use.

Both Models Feature:

Reliable Protection: Covered by a 1-Year Warranty for peace of mind.
1-inch hydraulic cylinder travel distance for precise control
Manual operation providing tactile feedback and pressure adjustment
Reliable desktop design for materials and chemistry research applications

Need Help? Call 1300 812 450

Specifications

MP24A Pellet Press

MP40 Pellet Press
