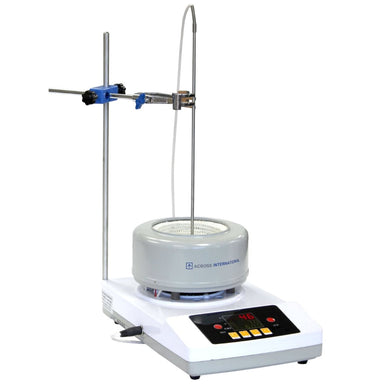

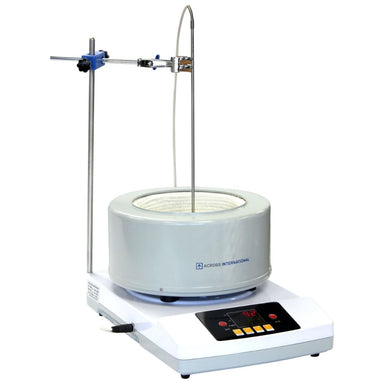

Across International DigiM Series Digital Heating Mantles

Precision Combined Heating and Stirring for Laboratory Applications

The Across International DigiM series digital heating mantles combine the precision of magnetic stirring with controlled heating functionality, creating essential laboratory tools for extraction, distillation, evaporation, and chemical synthesis processes. Available in five capacity configurations—DigiM05 (500mL), DigiM2 (2L), DigiM5 (5L), DigiM10 (10L), and DigiM20 (20L)—these plug-and-play systems provide safe heating without open flames while ensuring thorough sample mixing and uniform temperature control. Each mantle features PID-controlled digital displays with large, easy-to-read numbers for precise adjustment of temperature (ambient to 300°C) and rotation speed (up to 1500-2000 rpm depending on model). Equipped with dual PT100 thermocouples, the DigiM series allows simultaneous monitoring of both heater and material temperatures with 1-meter cable length and stainless steel probes, ensuring accurate thermal management throughout the process. Power requirements scale appropriately from 220 watts (DigiM05) to 2900 watts (DigiM20), with all models utilizing efficient 40-watt brushless DC motors for reliable, maintenance-free stirring performance.

Safety-Focused Design with Pre-Treated Components

The DigiM heating mantles are engineered with laboratory safety and user comfort as priorities, featuring pre-treated heating jackets that eliminate smoke and odor release during operation—a critical consideration for laboratory air quality and worker safety. Thermocouple failure protection provides automatic safeguards against overheating scenarios, while the robust construction ensures reproducibility and efficiency across academic and industrial settings. The versatile design accommodates round-bottom flasks ranging from 500mL to 20 litres with appropriately sized flask holders (110mm to 370mm top opening diameters), making these mantles suitable for diverse applications from small-scale research to production-level synthesis. Each unit is CE certified as standard, with optional UL/CSA certification available for DigiM10 and DigiM20 models, ensuring compliance with international laboratory safety standards. Backed by comprehensive one-year warranty coverage, the DigiM series delivers the reliability needed for complex experiments, chemical reactions, and biological assays where precise temperature control and thorough mixing are vital for successful outcomes.

Features - For All DigiM Models:

Reliable Protection: Covered by a 1-Year Warranty for peace of mind.
Five Capacity Options: From compact 500mL to high-volume 20L configurations for diverse laboratory scale requirements.
PID Temperature Control: Precise digital regulation from ambient to 300°C with large, easy-to-read display.
Dual Thermocouple System: Two PT100 thermocouples (1m cable, 230-380mm probes) monitor heater and material temperatures simultaneously.
Variable Speed Magnetic Stirring: Brushless DC motors provide 1500-2000 rpm stirring with 40-watt efficient power.
Pre-Treated Heating Jacket: Factory treatment eliminates smoke and odor release for clean laboratory environment.
Plug-and-Play Operation: Ready to use immediately with intuitive digital controls and straightforward setup.
Thermocouple Failure Protection: Automatic safety mechanisms prevent overheating and equipment damage.
Flame-Free Safe Heating: Eliminates fire hazards associated with Bunsen burners and open flames.
International Certification: CE standard on all models, UL/CSA optional on DigiM10 and DigiM20.

Need Help? Call 1300 812 450

Specifications

DigiM05

DigiM2

DigiM5

DigiM10

DigiM20
