Across International PQN Series Gear Drive Planetary Ball Mills

Across International PQN04, PQN2, PQN4, PQN12 & PQN20 Gear Drive Planetary Ball Mills

Advanced Planetary Milling for Research and Production

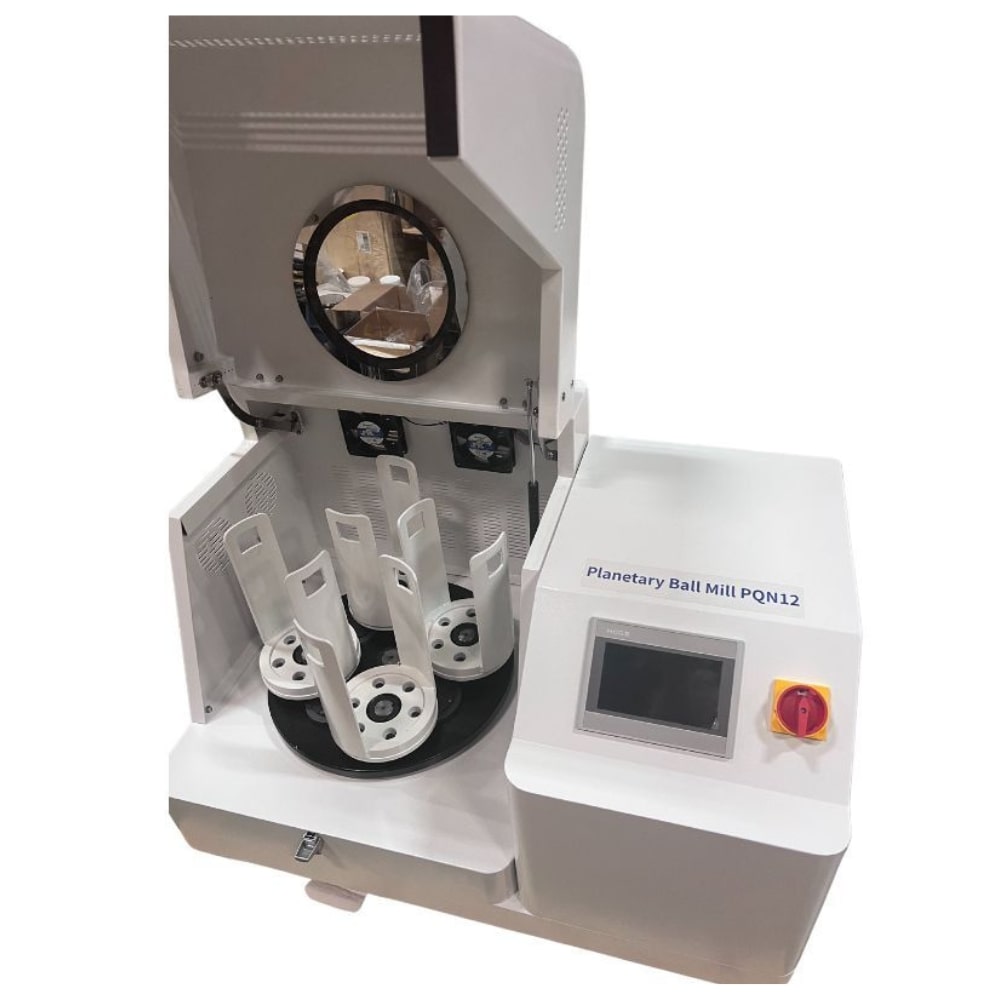

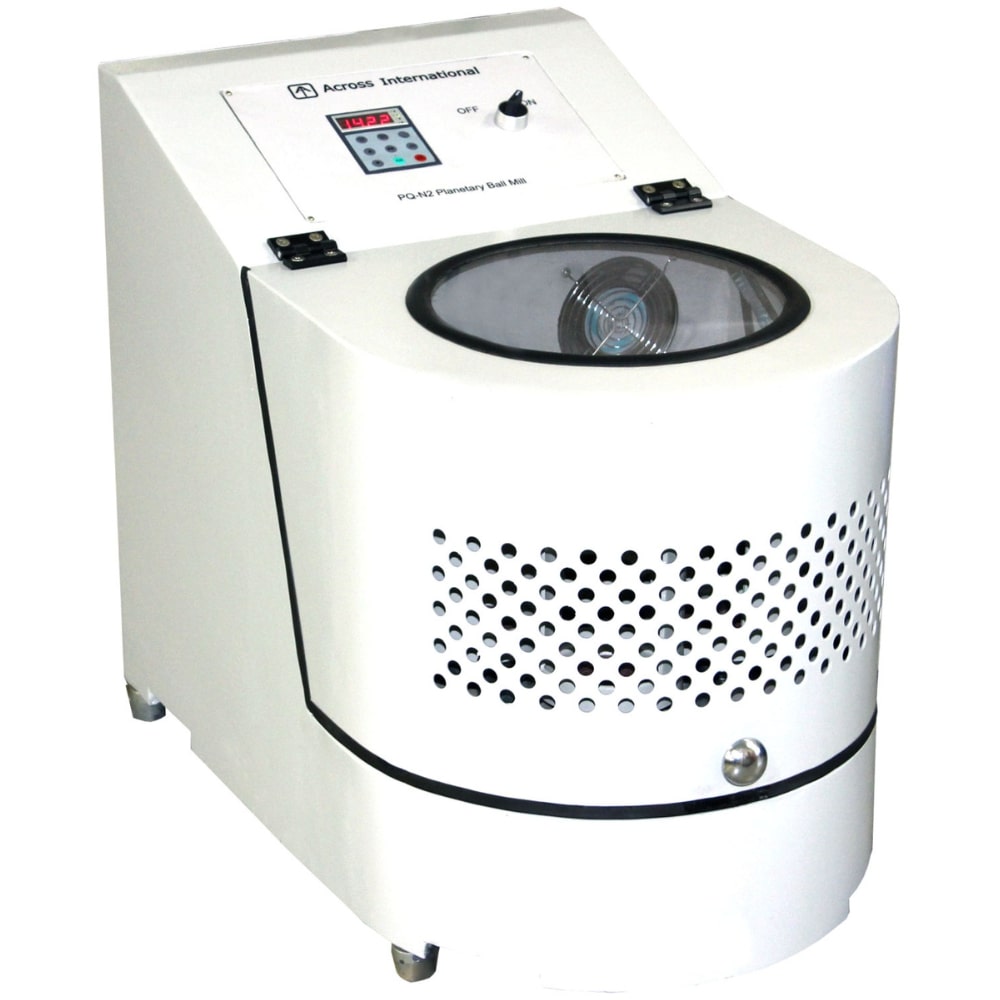

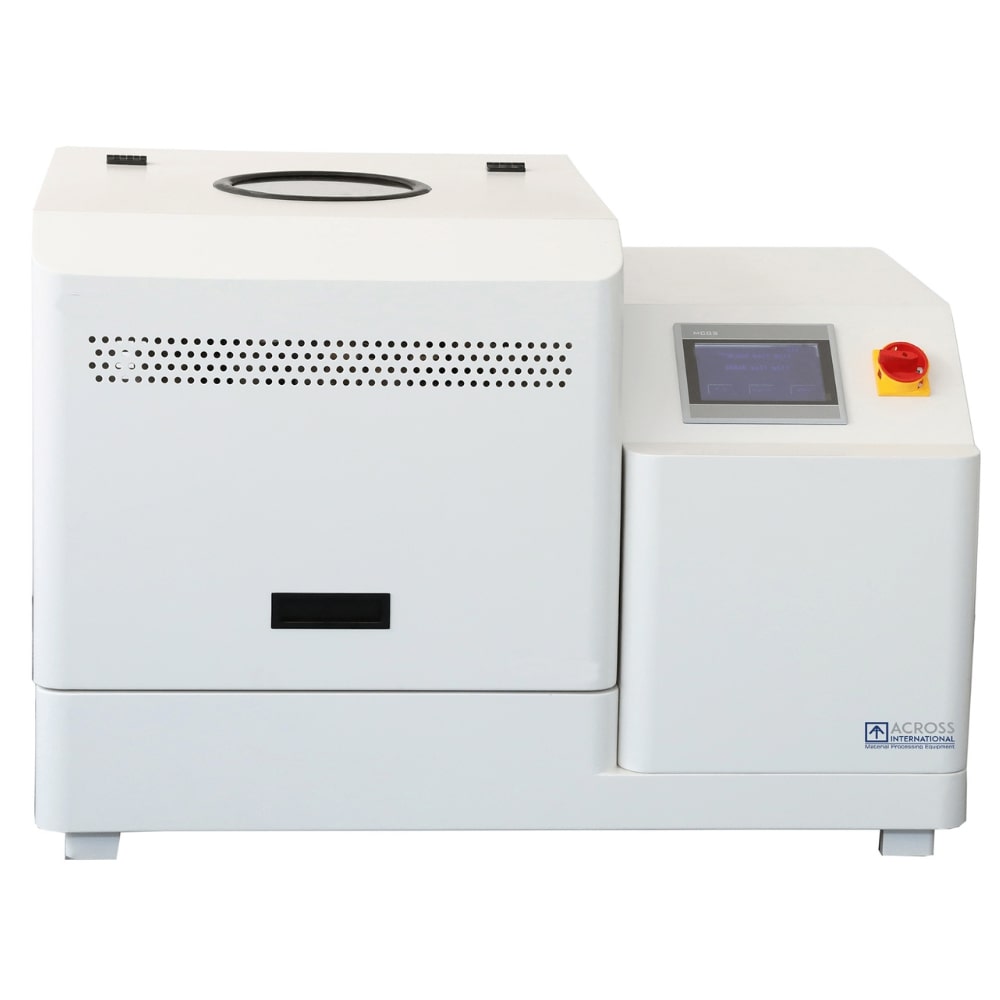

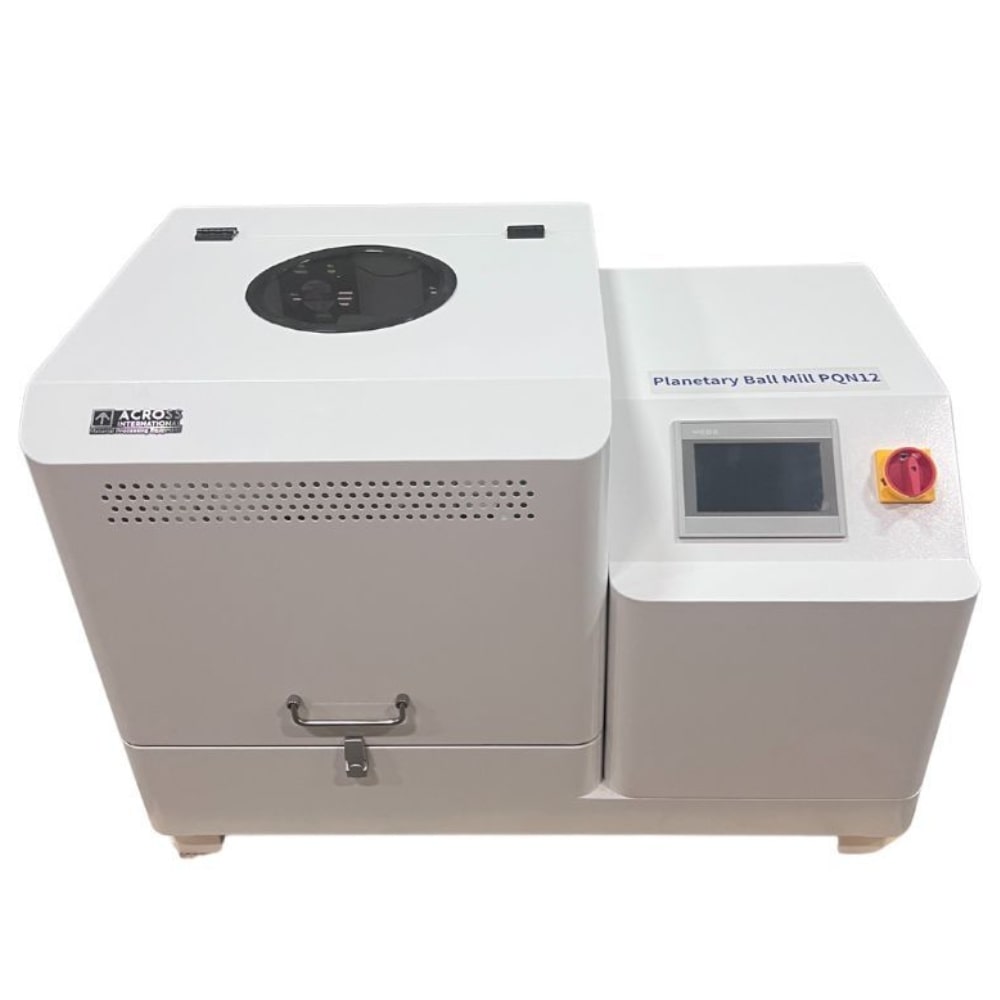

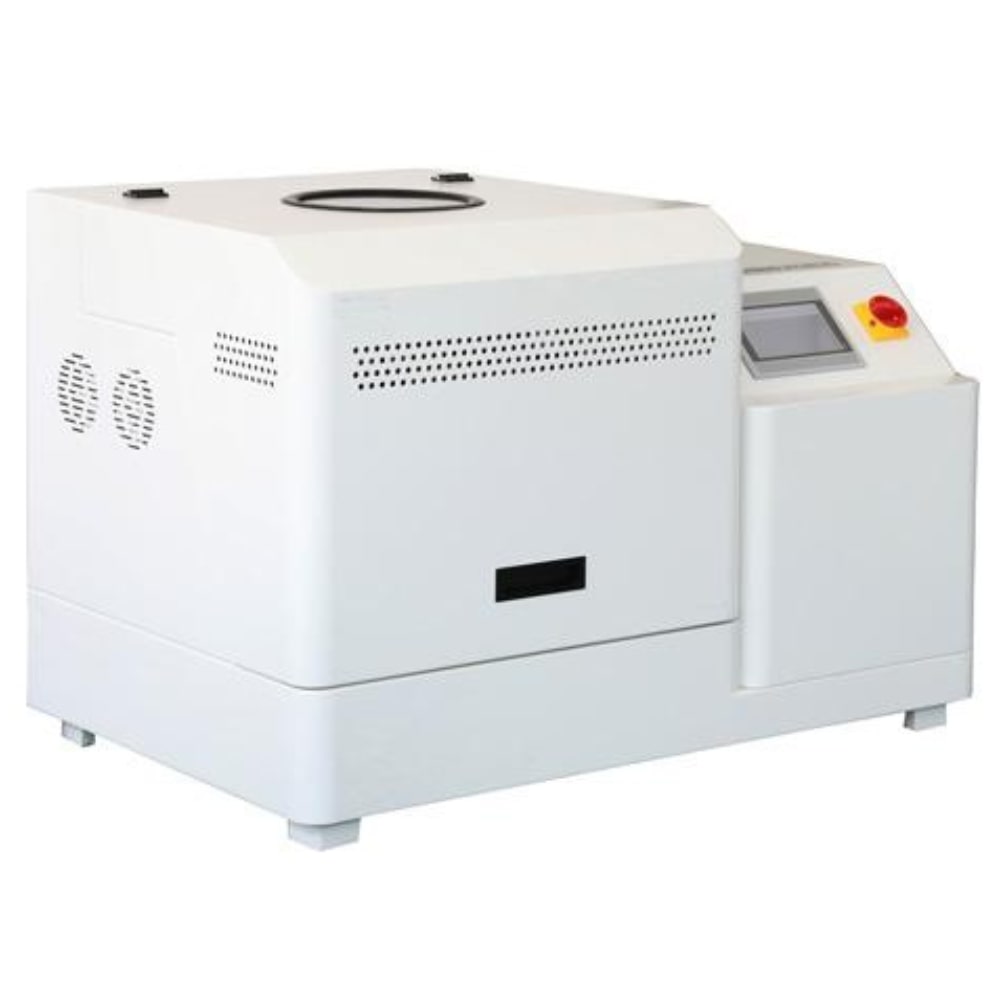

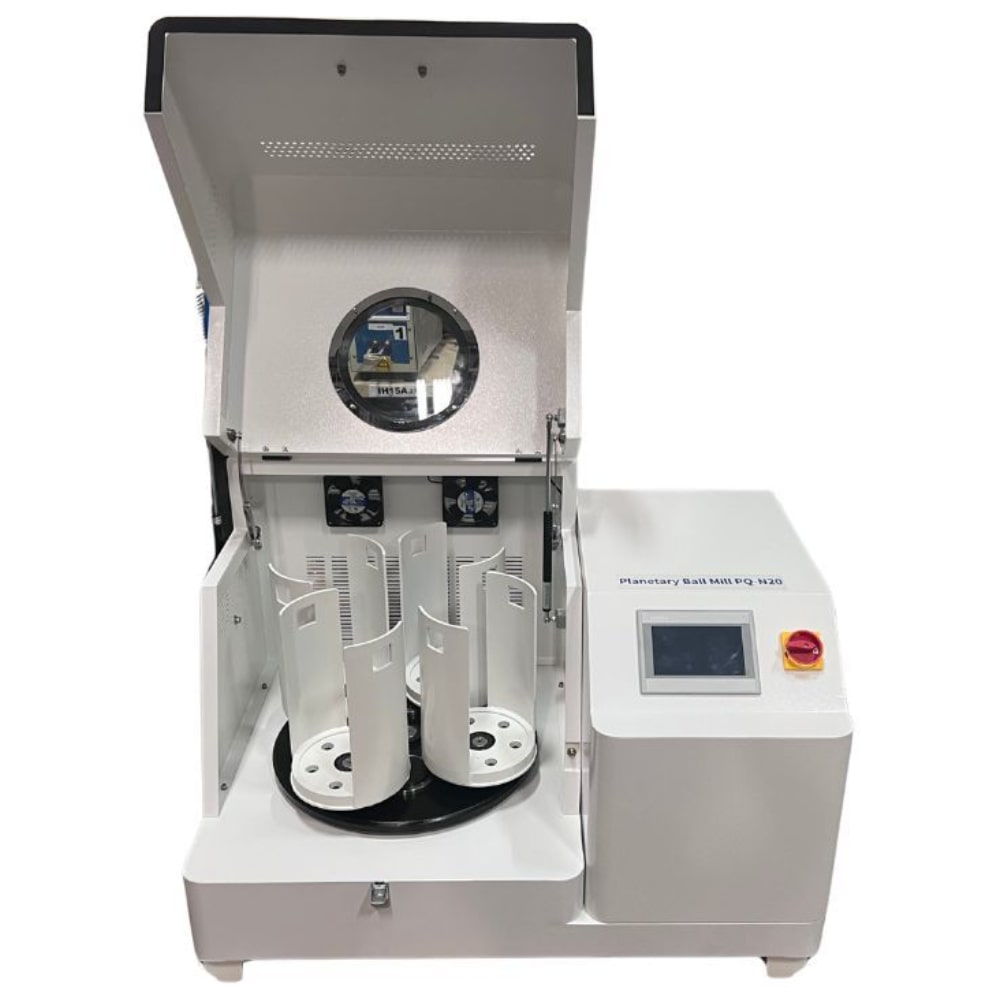

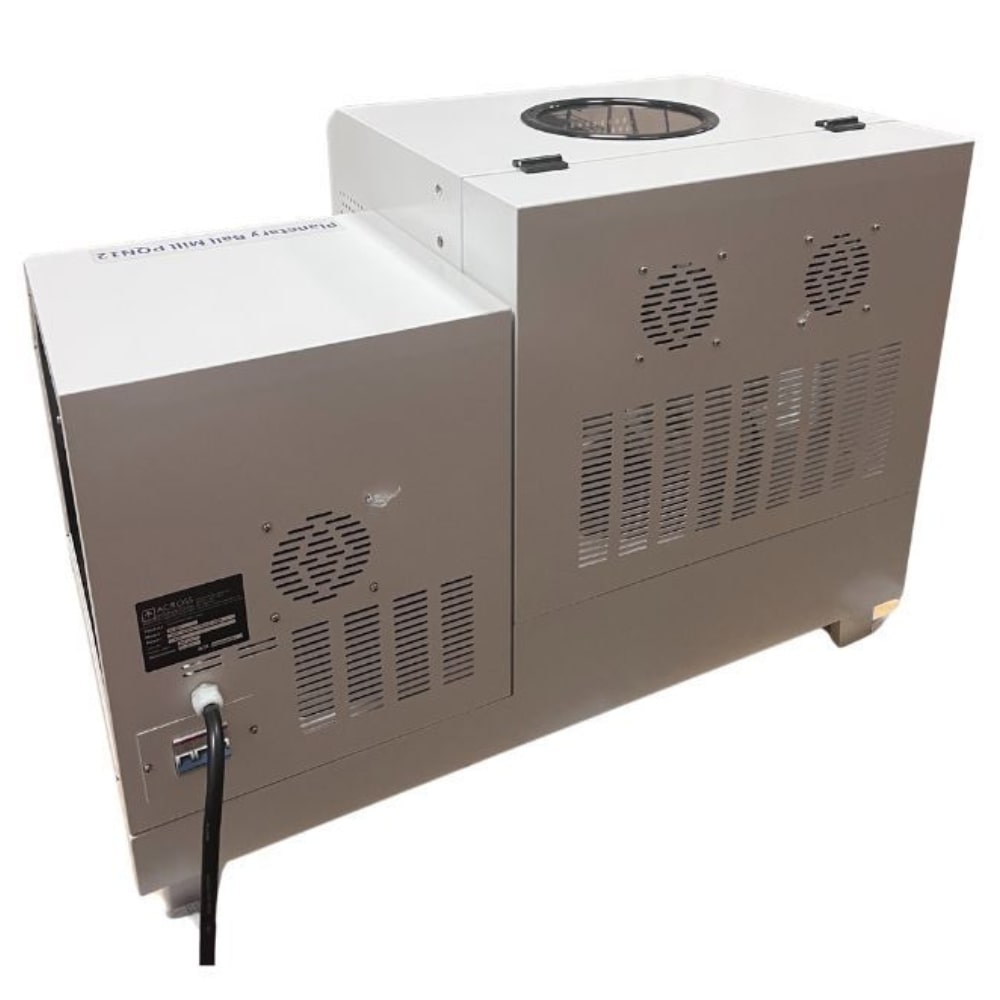

The Across International PQN series planetary ball mills deliver versatile grinding solutions for mixing, homogenizing, fine grinding, mechanical alloying, cell disruption, small volume high-tech material production, and colloidal grinding applications. Available in five capacity configurations—PQN04 (4×100ml), PQN2 (4×500ml), PQN4 (4×1000ml), PQN12 (4×3L), and PQN20 (4×5L)—these gear-driven systems provide ideal wet/dry milling capabilities for acquiring research samples with high efficiency and low noise. Each model features four grinding stations arranged on a "Sun Wheel" that subjects grinding balls to superimposed rotational movements known as Coriolis Forces, creating interactions between frictional and impact forces that release high dynamic energies capable of achieving minimum granularity down to 0.1 micron. Power requirements scale with capacity, from 370 watts (PQN04) to 5000 watts (PQN20), with planetary jar rotation speeds ranging from 600 rpm on smaller models to 270 rpm on the largest PQN20, ensuring optimal grinding conditions across all sample sizes.

Flexible Operation with Advanced Programming

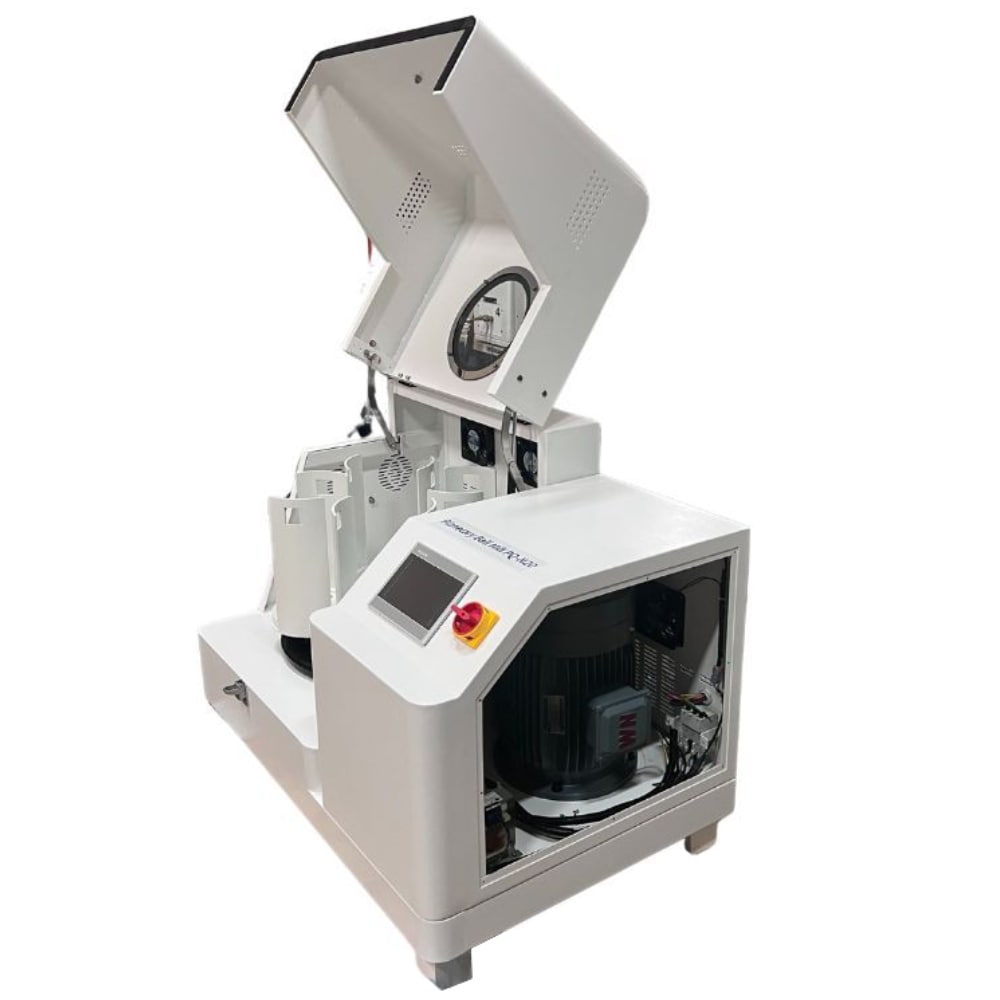

All PQN models incorporate sophisticated timer controls managing running time from 1 to 999 minutes with five distinct grinding methods: single direction without timing for continuous milling, single direction with timing for designated periods, bi-directional timing for alternating clockwise/counter-clockwise operation, single direction with paused intervals, and bi-directional with paused intervals—providing complete flexibility for diverse sample processing requirements. Compatible with both standard and vacuum jars (vacuum capacity typically 50% of standard jar size), these mills accommodate feeding granularity up to 10mm for soil materials or 3mm for other materials, processing them to 2/3 jar capacity with maximum continuous operating times of 72 hours. The gear-drive design eliminates problems associated with belt-driven systems such as creep and abrasion, while maintaining low centre of gravity, excellent rigidity, compact structure, and safe, reliable operation. Each mill features adjustable height, integrated safety switches ensuring automatic shutdown if the cover opens during operation, and compatibility with various grinding jar and ball materials to match specific application requirements.

Features - For All PQN Models:

• Reliable Protection: Covered by a 1-Year Warranty for peace of mind.
• Five Capacity Options: From compact PQN04 (4×100ml) to high-volume PQN20 (4×5L) for diverse sample processing needs.
• Ultra-Fine Grinding: Achieves minimum granularity down to 0.1 micron through Coriolis Force mechanism.
• Gear-Drive Technology: Eliminates belt creep and abrasion issues for superior reliability and performance.
• Advanced Programming: Five grinding methods with timer control (1-999 minutes) including bi-directional and interval modes.
• Simultaneous Multi-Sample Processing: Four grinding stations allow processing of samples with different sizes and materials.
• Vacuum Compatibility: Optional vacuum jars enable processing in controlled atmosphere environments.
• Continuous Operation: Maximum 72-hour continuous running time for extended grinding applications.
• Safety Features: Automatic shutdown safety switch activates when cover is opened during operation.
• Leak-Proof Design: Sealed jars suitable for wet grinding applications without cross-contamination.
• Versatile Media Options: Compatible with grinding jars and balls in various materials (stainless steel, agate, alumina, zirconium oxide, etc.).
• High Uniformity: Excellent repeatability with fast rotational speeds for consistent, reproducible results.
• Adjustable Configuration: Height-adjustable design with low centre of gravity for stable, quiet operation.

Need Help? Call 1300 812 450

Specifications

                                                          PQ-N04

                                                          PQ-N2

                                                         PQ-N4

                                                         PQ-N12

                                                         PQ-N20
