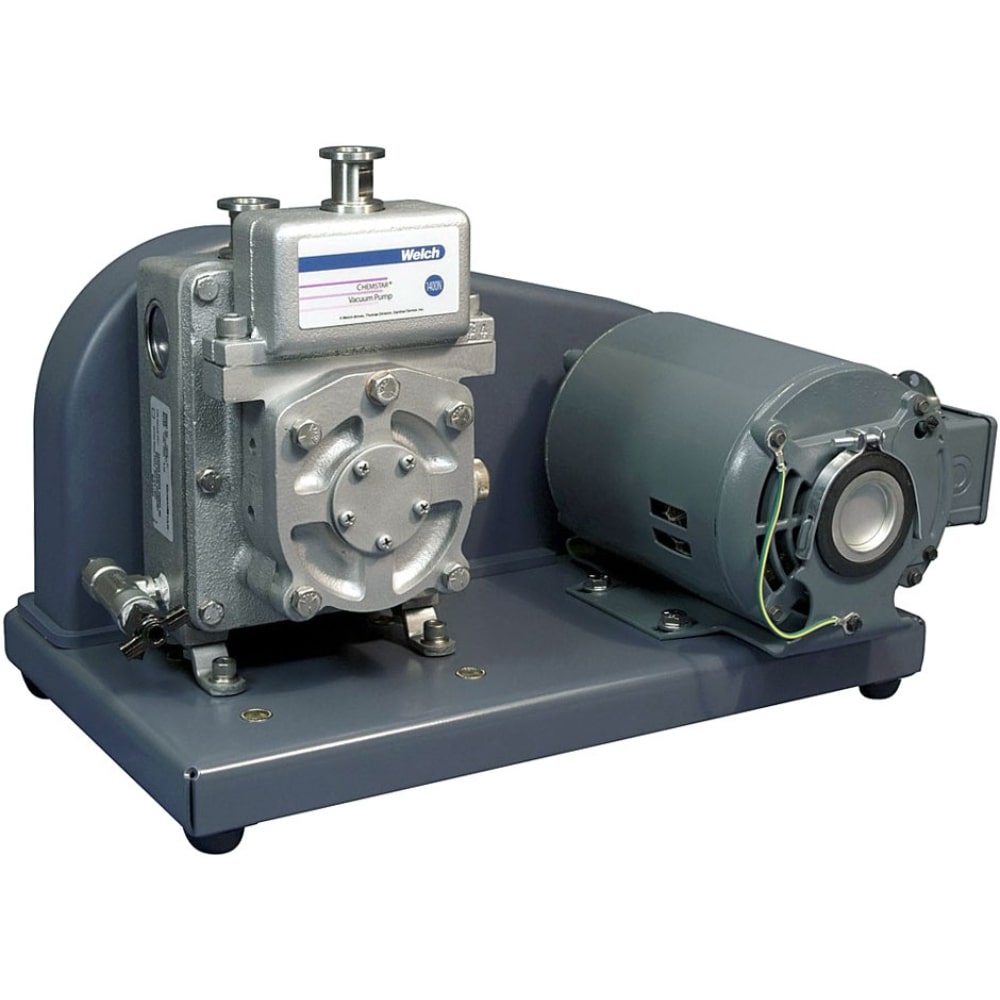

Welch Chemstar 1400N 2-Stage Laboratory Vacuum Pump Angled Right Front View

Welch ChemStar 1400N 2-Stage Laboratory Vacuum Pump

by Across International
$4,542.15

Notify me when back in stock

FREE SHIPPING: Australia wide — Yes, even remote areas.

Processing Time: 1 - 3 business days.

Delivery Time: Up to 7 business days for metro areas.

Up to 7 - 14 business days for all other areas.

Return Policy: 30 Day Returns.

Need help? Call us on 1300 812 450

Free Shipping
30 Day Returns
Reliable Warranty
Premium Product
Australia Wide Delivery

Welch Chemstar 1400N Vacuum Pump

Superior Chemical Resistance for Harsh Laboratory Environments

The Welch ChemStar 1400N is a belt-driven rotary vane vacuum pump specifically engineered to tolerate harsh chemical contamination in demanding laboratory applications. This rugged system features a PTFE-coated oil case, stainless steel valves, and a nitrogen bubbler feature designed for laboratories with nitrogen supply capabilities. The PTFE-lined oil case provides exceptional corrosion resistance, ensuring cleaner oil and preventing polymerized contaminants from binding to interior surfaces—a critical advantage when initiators bypass traps and react with hydrocarbon oil. The nitrogen purge system allows users to blow nitrogen through the oil case while processing extremely corrosive gases, effectively cooling and degassing the oil while minimizing chemical reactivity. Combined with fluorocarbon gaskets, superior chemical-resistant seals, and Gold Oil synthetic lubricant, the ChemStar system delivers unmatched durability and contamination management for processes with unclean emissions.

Versatile Performance with World-Renowned Reliability

Known globally for their ruggedness, Welch ChemStar vacuum pumps feature large oil reservoirs that effectively dilute contaminants, while low pump rotational speed reduces friction and wear, minimizing reservoir temperature to lessen chemical reactivity. The 1400N delivers excellent ultimate pressure performance of 1x10⁻⁴ torr with a pumping speed displacement of 0.9 CFM, making it ideal for diverse applications including vacuum furnace evacuation, backing turbomolecular and diffusion pumps, rotary evaporation, refrigeration system evacuation, epoxy degassing, vacuum sterilization, backing mass spectrometers, freeze drying, vacuum centrifugal applications, vacuum distillation, and space research. This durable vacuum pump offers superior vapor handling capability, combining chemical resistance with reliable performance for demanding laboratory vacuum processes requiring both contamination tolerance and consistent operation.

Features:

  • Reliable Protection: Covered by a 1-Year Warranty for peace of mind.
  • Extended Service Life: Low rotation speed of 580 rpm reduces friction and wear for longer operational lifespan.
  • Corrosion-Resistant Construction: Vital pump components engineered to withstand harsh chemical contamination.
  • Large Oil Reservoir: 0.6 liter (0.62 quart) capacity effectively dilutes contaminants and maintains lubrication.
  • Excellent Ultimate Vacuum: Achieves 0.1 micron (1x10⁻⁴ torr) ultimate vacuum pressure for demanding applications.
  • Efficient Pumping Performance: 0.9 CFM displacement rate ideal for rotary evaporation and distillation.
  • Adjustable Gas Ballast: Variable gas ballast system for optimized vapor handling and condensable gas processing.
  • Universal Power Compatibility: 220-240V 50/60Hz single phase operation (1/3 HP, 250 watts).
  • Standard Vacuum Connections: NW16/KF16 threaded intake and exhaust with 7/16 inch intake ID.
  • Compact Footprint: Space-efficient design at 450 x 230 x 320 mm for benchtop installation.
  • Safety Certified: CSA compliance ensures adherence to North American safety standards.
