Ratek Vortex Mixer Series (VM1, MTV1 & MPS1)

Ratek Vortex Mixer Series Descriptions

Applications for Vortex Mixers

Vortex mixers provide efficient mixing of precipitates within test tubes, small bottles, and flasks. Cell culture and microbiology laboratories employ these devices for cell suspension procedures, while biochemical and analytical laboratories utilize them for combining assay reagents or blending experimental samples with dilutants.

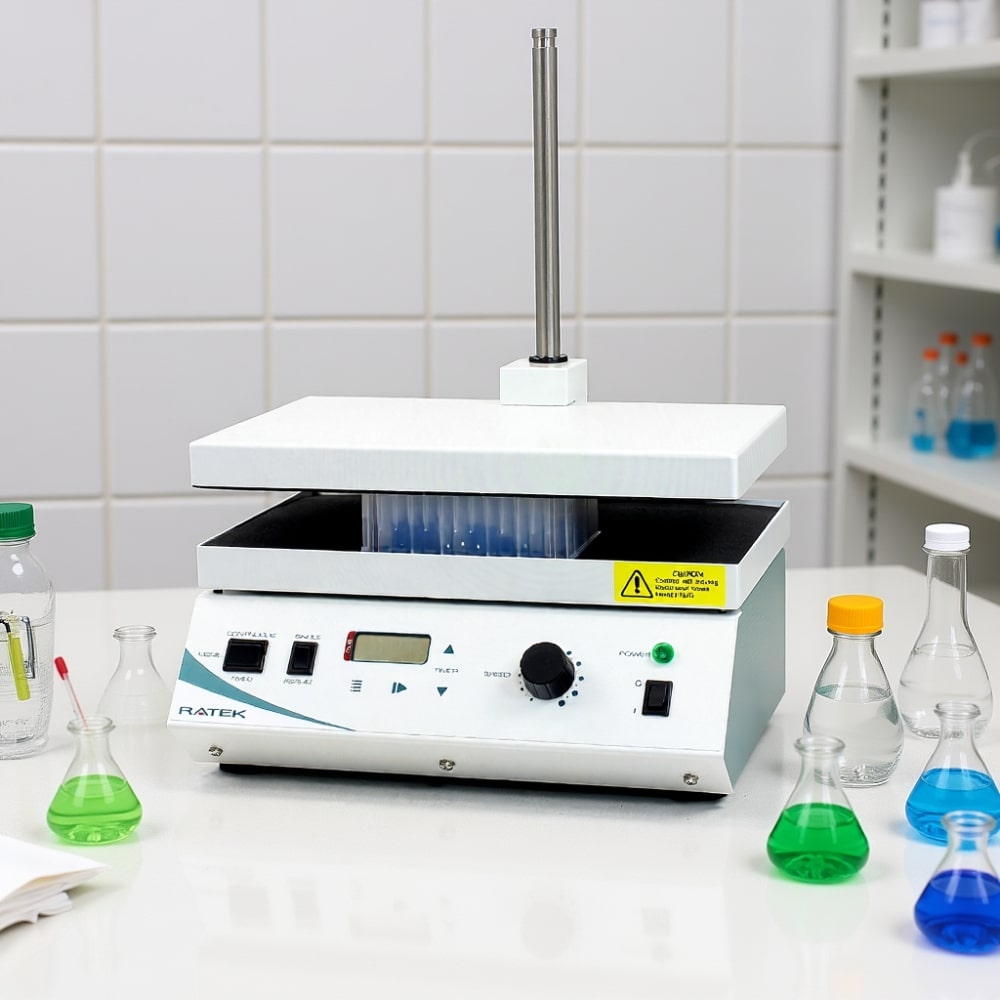

Ratek MTV1 Vortex Mixer Description:

The Ratek MTV1 Vortex Mixer delivers exceptional versatility for laboratory mixing applications, capable of operating in both automated and manual modes to meet diverse sample preparation needs. In automated mode, the generous 320 x 200mm platform accommodates an entire standard test tube rack filled with tubes of equal length, enabling hands-free mixing with precise timing control. The advanced digital timer offers countdown mode for durations up to 99 minutes 59 seconds, or pulse mode with customizable on/off cycles of up to 99 seconds each, providing optimal control for time-sensitive protocols and delicate samples requiring intermittent mixing.

The MTV1's adaptability extends to manual vortex mixing applications, where the removable clamping plate allows various tubes and flasks to be positioned against the platform at any desired angle to achieve specific mixing actions. The adjustable speed control operates across an impressive range from approximately 200 to 3,000 RPM, enabling users to tailor the mixing intensity to match their specific requirements, from gentle suspension of sensitive cell cultures to vigorous mixing of precipitates and reagents. This combination of automated convenience and manual flexibility makes the MTV1 an indispensable tool for laboratories requiring reliable, consistent mixing performance across a wide range of container types and sample volumes.

• Platform size of 320 x 200mm
• Speed range approx. 200 to 3,000 RPM

• CD digital timer with countdown or pulse mode

• Vortex virtually any container

• Will accommodate a whole rack of test tubes

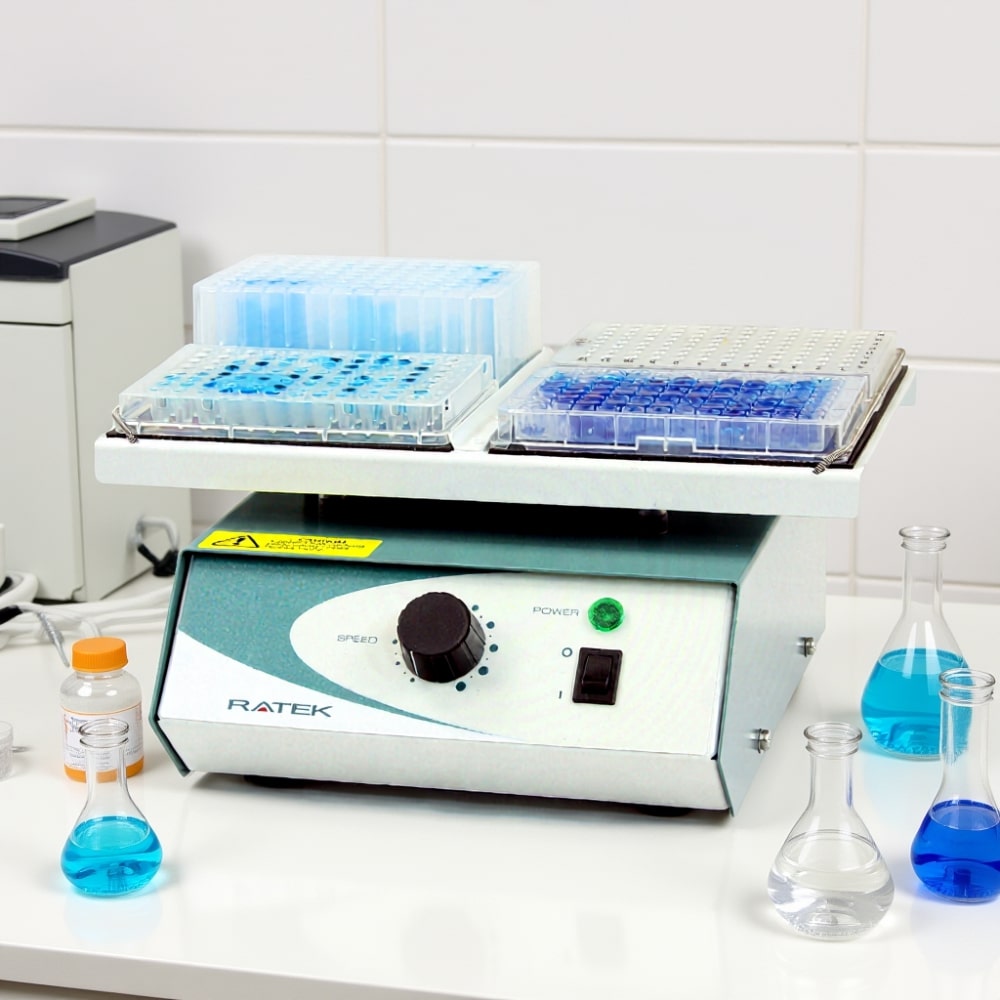

Ratek MPS1 Vortex Mixer Description:

The Ratek MPS1 Vortex Mixer is specifically engineered for microtiter plate applications, capable of accommodating up to four 96-well plates simultaneously on its precision-designed platform. The variable speed control system provides exceptional versatility, enabling users to select from gentle to vigorous mixing intensities to suit diverse experimental requirements and sample sensitivities. The counterbalanced drive system operates with electronic control to ensure smooth, quiet performance during extended unattended operation periods, making it ideal for lengthy protocols requiring consistent agitation without laboratory disruption.

Designed for reliability and ease of use, the MPS1 features a simple yet secure plate positioning system utilizing locating strips and stainless steel springs that hold microtiter plates firmly in place during mixing cycles. The 3mm mixing orbit combined with the wide speed range delivers efficient mixing across various sample types and viscosities, ensuring thorough homogenization without compromising sample integrity. Operating effectively within a temperature range of 0° to 45°C and maximum humidity of 80% RH (non-condensing), this robust mixer provides dependable performance in standard laboratory environments, making it an essential tool for high-throughput assays, cell culture applications, and analytical procedures requiring precise plate agitation.

• Holds up to 4 x 96 well microtiter plates

• Variable speed mixing

• Wide speed range and 3mm mixing orbit

• Efficient mixing method

Ratek VM1 Vortex Mixer Description:

The Ratek VM1 Vortex Mixer is a robust and user-friendly single tube mixer designed to accommodate most test tubes up to 28mm diameter with exceptional reliability and performance. This versatile unit features dual operating modes to suit different laboratory workflows: automatic mode for continuous operation during extended mixing protocols, and manual mode that activates only when a tube is placed in the mixing cup with downward pressure applied. The variable speed control system operates from 200-2700 RPM, enabling users to achieve anything from gentle mixing actions to vigorous vortex agitation, while the ability to vary tube angle and applied pressure provides additional control over mixing intensity.

Built with durability in mind, the VM1 incorporates a well-proven mechanism that delivers extreme reliability for demanding laboratory environments. The counterbalanced drive system ensures quiet and smooth operation, minimizing laboratory noise while maintaining consistent performance throughout extended use periods. The included silicon cup provides secure tube positioning and helps protect samples from contamination while accommodating various tube sizes within the specified diameter range. This combination of operational flexibility, reliable performance, and user-friendly design makes the VM1 an essential tool for laboratories requiring dependable single-tube vortex mixing capabilities.

• 200-2700 RPM tube vortex mixer with silicon cup

• Manual mode for activation with downward pressure

• Automatic mode for permanent operation

• Quiet and smooth operation
• Extreme reliability with a well proven mechanism

Ratek VM1-FT Flat Top Attachment Description:

The VM1-FT flat top attachment is designed specifically for use with the Ratek VM1 vortex mixer and features a nitrile rubber construction that provides a secure, non-slip surface. This attachment is perfectly suited for mixing beakers, plates, and trays that require stable platform agitation.

• Flat top attachment for VM1

• Nitrile Rubber non slip surface

• Ideal for mixing beakers, plates and trays

Need Help? Call 1300 812 450

Specifications

Need Help? Call 1300 812 450

Downloads

MPS1 Microplate Vortex Mixer - Brochure

MTV1 Multi-Tube Vortex Mixer - Brochure

VM1 Personal Vortex Mixer - Brochure
